Jaag Anirudhan

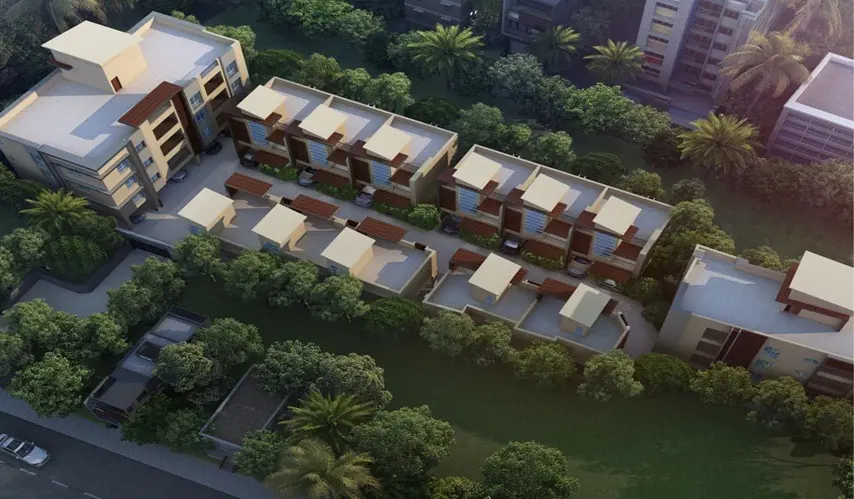

The finest homes are not always the busiest. They are quiet homes that do everything right. In the comfortably inhabited part of Ambattur, Chennai, lies Jaag Anirudhan by Jaag Homes. Unlike other properties, this property consists of just 10 homes, designed as 3 BHK apartments ranging between 1,180 sq ft and 1,569 sq ft at Jaag Anirudhan in Ambattur.

Visualize your evening as you come back home from work, get into the elevator, and your door opens into a peaceful home. With access control systems installed, the building is safe, while CCTV installed on the premises keeps an eye on things so the family can unwind. The project gives thoughtful details and ideas. For example, there is a water treatment facility that makes sure the water used is clean. Also, the use of rainwater harvesting serves the purpose of recycling.

SPECIFICATIONS

STRUCTURE

RCC Framed structure as per the structural drawing

RCC frame structure with brickwork partitions, Concrete grade and Steel grade as per structural consultant's advice.Walls in 9"/4.5" thickness in bricks for internal & external

Floor to Floor height 3000 mm

Ceiling and walls are cement plastered

Double washed M.sand used for all construction works.

FLOORING

Vitrified tile in 1200 mm * 600 mm Living / Dining / Kitchen / Bedrooms

Matt finish floor tiles for Toilets and Balcony floors

Toilet wall dado 600 mm * 300 wall Dado up to door frame height from floor.

Polished granite flooring for lift lobby and staircase with SS hand railing

Granolithic Flooring for car parking

JOINERY

Polished Teak wood frame and solid wood shutters

All bedroom doors: Hard frame with Molded Flush Doors with painted finish for all bed rooms

Toilets: with water proof plastic coated Molded Flush Door with paint finish

Windows: UPVC open able / sliding windows with Grills grouted into the Walls

KITCHEN

Polished black granite working platform as per Architect layout / design

Vitrified tile dado for 2"height above granite platform

Single bowl stainless steel sink with drain board in Kitchen

WALL FINISHES

All external walls One coat primer with 2 coats of Apex

Ceiling Two coats of Putty, One coat of Primer and Two coats of Premium emulsion paint

Internal Two coats of Putty, One coat of Primer and Two coats of Premium emulsion paint

TOILETS

White wall mounted EWC with concealed tank & Wash basin as per builder choice.

Shower will be single lever diverter and spout All CP fixtures in Roca as per builder choice

All water lines shall be CPVC / UPVC pipes, Drainage and Storm water drain pipes shall be in PVC


ELECTRICAL

• Concealed insulated copper multi-strand wiring with modular type switches – Anchor / MK or equivalent.

• Distribution board with MCBs in each apartment.

• Provision for split AC in all bedrooms, living and dining areas.

• One telephone point each in the living room and master bedroom of each apartment.

• One telephone point each in the living room and master bedroom of each apartment.

• 2 lights, 1 fan and 2 plug points (5 Amps) in each bedroom. Two-way control for 1 light and fan.

• 2 light points, 1 fan point and 4 plug points (2 Nos. 5 Amps + 2 Nos. 5/15 Amps) in the kitchen.

• 1 light point and 1 plug point (1 No. 15 Amps) for the washing machine.

• 2 light points, 1 (5 Amps) point for shaver, 1 exhaust point and 1 No. 15 Amp point for geyser in all bathrooms.

• Generator backup for common area lights, lifts and pumps in the project.

• Common area and external light fixtures will be provided as per the architect's design.

• UPS provision for 1 light and 1 fan in each room of the apartment.

SECURITY SYSTEMS

• CCTV in common areas connected to security.

• Dish TV / Cable TV provision for apartments.

• Access control door at the lobby entrance.

SUMP

• One underground sump with a capacity of approximately 12,000 litres for water storage.

• Overhead tank with a one-day storage capacity.

BOREWELL

Borewell will be provided for the project.

• Railway Station - 2 Mins

• TCS Ambattur - 2 Mins

• Ambattur OT - 3 Mins

• Bhaktavatsalam School - 4 Mins

• Saravana Stores - 6 Mins

• Upcoming Metro - 6 Mins

• MMM Hospital - 7 Mins

• VR Mall - 10 Mins
